Solar Ware 1667
Certifications

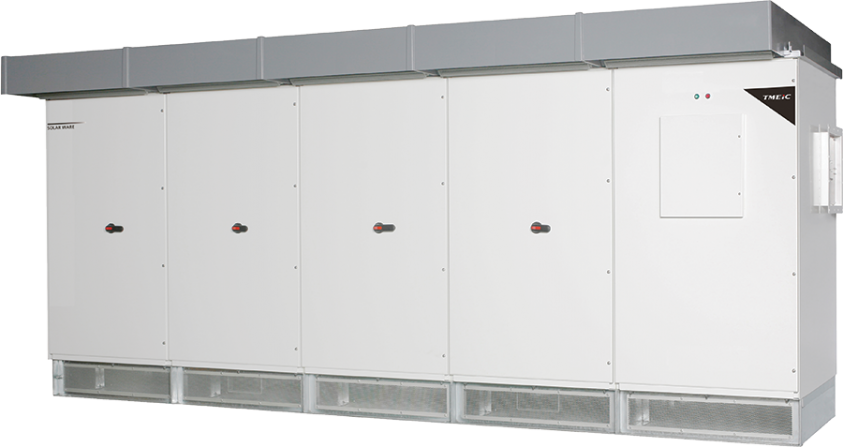

The SOLAR WARE 1833GRQ/Solar Ware 1667ER(J) is one of the largest central PV inverter in the 1000V power class. The first heat-pipe based hybrid cooling technology implemented in utility-scale PV inverter solution providing optimal opex model.
Features and Benefits
New technology innovation
- Proprietary 3-level (Advanced Multi-level) IGBT architecture provides reduction on switching loss and performance enhancement through filter reactor size optimization
- Industry's leading 98.6% efficiency (including auxiliary power consumption)
World's first heatpipe technology in utility-scale PV inverter
- Utilizing TMEIC heat pipe technology, the inverter runs without fan operation up to 40% load
- Heatpipe cooling significantly simplifies thermal management, because it uses fewer parts and only a slow-speed fan with a heat pipe heat sink
Easy System Integration
- Full direct bus connection both on DC and AC side provides easy installation on-site
Specifications
| PVL-L1833GRQ | PVL-L1667ER(J) | |
|---|---|---|
| kW Rating | 1667kW | 1667kW |
| Max. Input DC Voltage | 1000V | 1000V |
| MPP Range | 605~950V | 550~950V |
| Maximum Efficiency | 99.0% | 98.60% |
| Region Rated Efficiency | 98.5% | 98.30% |
| Transformer Type | Transformerless | Isolationless |
| Temperature Rating | -20 ~ 50°C | -20 ~ 50°C |
| Certification Compliance | UL1741/IEEE1547 | JEC |
| Enclosure | NEMA3R | IP45/IP55 |
kW Rating
PVL-L1833GRQ
1667kW
PVL-L1667ER(J)
1667kW
Max. Input DC Voltage
PVL-L1833GRQ
1000V
PVL-L1667ER(J)
1000V
MPP Range
PVL-L1833GRQ
605~950V
PVL-L1667ER(J)
550~950V
Maximum Efficiency
PVL-L1833GRQ
99.0%
PVL-L1667ER(J)
98.60%
Region Rated Efficiency
PVL-L1833GRQ
98.5%
PVL-L1667ER(J)
98.30%
Transformer Type
PVL-L1833GRQ
Transformerless
PVL-L1667ER(J)
Isolationless
Temperature Rating
PVL-L1833GRQ
-20 ~ 50°C
PVL-L1667ER(J)
-20 ~ 50°C
Certification Compliance
PVL-L1833GRQ
UL1741/IEEE1547
PVL-L1667ER(J)
JEC
Enclosure
PVL-L1833GRQ
NEMA3R
PVL-L1667ER(J)
IP45/IP55
