Solar Ware 2500
Certifications

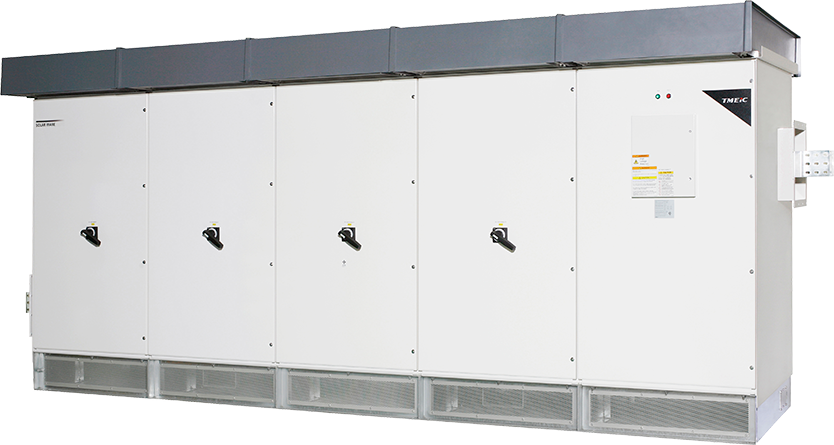

SOLAR WARE 2500 is one of the largest central PV inverter in the 1500V power class. The first heat-pipe based hybrid cooling technology implemented in utility-scale PV inverter solution providing optimal opex model.
Features and Benefits
New technology innovation
- Proprietary 3-level (Advanced Multi-level) IGBT architecture provides reduction on switching loss and performance enhancement through filter reactor size optimization
- Industry’s leading 98.8% efficiency
World's first heatpipe technology in utility-scale PV inverter
- Utilizing TMEIC heat pipe technology, the inverter runs without fan operation up to 50% load
- Heatpipe cooling significantly simplifies thermal management, because it uses fewer parts and only a slow-speed fan with a heat pipe heat sink
Easy System Integration
- Full direct bus connection both on DC and AC side provides easy installation on-site
Specifications
| PVH-L2500ER | PVH-L2500GR | |
|---|---|---|
| kW Rating | 2500kW | 2500kW |
| Max. Input DC Voltage | 1500V | 1500V |
| MPP Range | 800~1300V | 800~1300V |
| Maximum Efficiency | 98.8% | 98.8% |
| Region Rated Efficiency | 98.5% | 98.5% |
| Transformer Type | Transformerless | Transformerless |
| Temperature Rating | -20 ~ 50°C | -20 ~ 50°C |
| Certification Compliance | IEC Standard | UL1741/IEEE1547 |
| Enclosure | IP44/IP54 (Electronic Circuit) | NEMA3R |
kW Rating
PVH-L2500ER
2500kW
PVH-L2500GR
2500kW
Max. Input DC Voltage
PVH-L2500ER
1500V
PVH-L2500GR
1500V
MPP Range
PVH-L2500ER
800~1300V
PVH-L2500GR
800~1300V
Maximum Efficiency
PVH-L2500ER
98.8%
PVH-L2500GR
98.8%
Region Rated Efficiency
PVH-L2500ER
98.5%
PVH-L2500GR
98.5%
Transformer Type
PVH-L2500ER
Transformerless
PVH-L2500GR
Transformerless
Temperature Rating
PVH-L2500ER
-20 ~ 50°C
PVH-L2500GR
-20 ~ 50°C
Certification Compliance
PVH-L2500ER
IEC Standard
PVH-L2500GR
UL1741/IEEE1547
Enclosure
PVH-L2500ER
IP44/IP54 (Electronic Circuit)
PVH-L2500GR
NEMA3R
