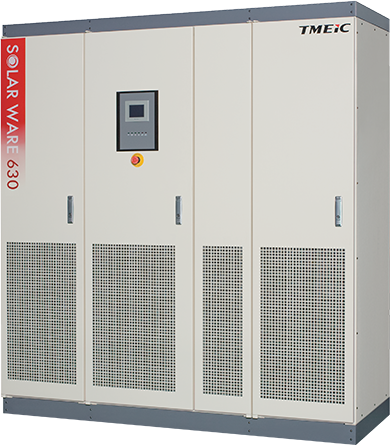

Solar Ware 630
Certifications
SOLAR WARE 630 is a highly engineered 1000V PV inverter suitable for mega-solar power plant deployment. TMEIC’s proprietary 3-level topology redefines utility scale PV system with industry’s leading efficiency level and smallest footprint.
Features and Benefits
New technology innovation
- Proprietary 3-level (Advanced Multi-level) IGBT architecture provides reduction on switching loss and performance enhancement through filter reactor size optimization.
- Wide DC MPP window allowing string sizing flexibility.
Optimization of operational expenditure
- All detailed fault waveform data are stored in SD memory card.
Specifications
| PVL-L0630E | PVL-L0630E BDEW | PVL-L0630E-S | PVL-L0630E(J) | |
|---|---|---|---|---|
| kW Rating | 630kW | 630kW | 630kW | 630kW |
| Max. Input DC Voltage | 1000V | 1000V | 1000V | 1000V |
| MPP Range | 550~950V | 550~950V | 550~950V | 550~950V |
| Maximum Efficiency | 98.6% | 98.6% | 98.6% | 98.6% |
| Region Rated Efficiency | 98.3%(IEC) 98.42%(CQC) | 98.3% | 97.3% | 98.1% |
| Transformer Type | Transformerless | Transformerless | Transformerless | Isolationless |
| Temperature Rating | -20 ~ 50°C | -20 ~ 50°C | -20 ~ 50°C | -5 ~ 40°C |
| Certification Compliance | IEC Standard, PEA CQC, LVRT | IEC Standard, PEA, BDEW | UL1741/IEEE1547 | JEC |
| Enclosure | IP20 | IP20 | IP2X (Indoors) | IP20 |
kW Rating
PVL-L0630E
630kW
PVL-L0630E BDEW
630kW
PVL-L0630E-S
630kW
PVL-L0630E(J)
630kW
Max. Input DC Voltage
PVL-L0630E
1000V
PVL-L0630E BDEW
1000V
PVL-L0630E-S
1000V
PVL-L0630E(J)
1000V
MPP Range
PVL-L0630E
550~950V
PVL-L0630E BDEW
550~950V
PVL-L0630E-S
550~950V
PVL-L0630E(J)
550~950V
Maximum Efficiency
PVL-L0630E
98.6%
PVL-L0630E BDEW
98.6%
PVL-L0630E-S
98.6%
PVL-L0630E(J)
98.6%
Region Rated Efficiency
PVL-L0630E
98.3%(IEC) 98.42%(CQC)
PVL-L0630E BDEW
98.3%
PVL-L0630E-S
97.3%
PVL-L0630E(J)
98.1%
Transformer Type
PVL-L0630E
Transformerless
PVL-L0630E BDEW
Transformerless
PVL-L0630E-S
Transformerless
PVL-L0630E(J)
Isolationless
Temperature Rating
PVL-L0630E
-20 ~ 50°C
PVL-L0630E BDEW
-20 ~ 50°C
PVL-L0630E-S
-20 ~ 50°C
PVL-L0630E(J)
-5 ~ 40°C
Certification Compliance
PVL-L0630E
IEC Standard, PEA CQC, LVRT
PVL-L0630E BDEW
IEC Standard, PEA, BDEW
PVL-L0630E-S
UL1741/IEEE1547
PVL-L0630E(J)
JEC
Enclosure
PVL-L0630E
IP20
PVL-L0630E BDEW
IP20
PVL-L0630E-S
IP2X (Indoors)
PVL-L0630E(J)
IP20
