TMdrive-XL85

Certifications

7.2 kV, up to 120 MVA

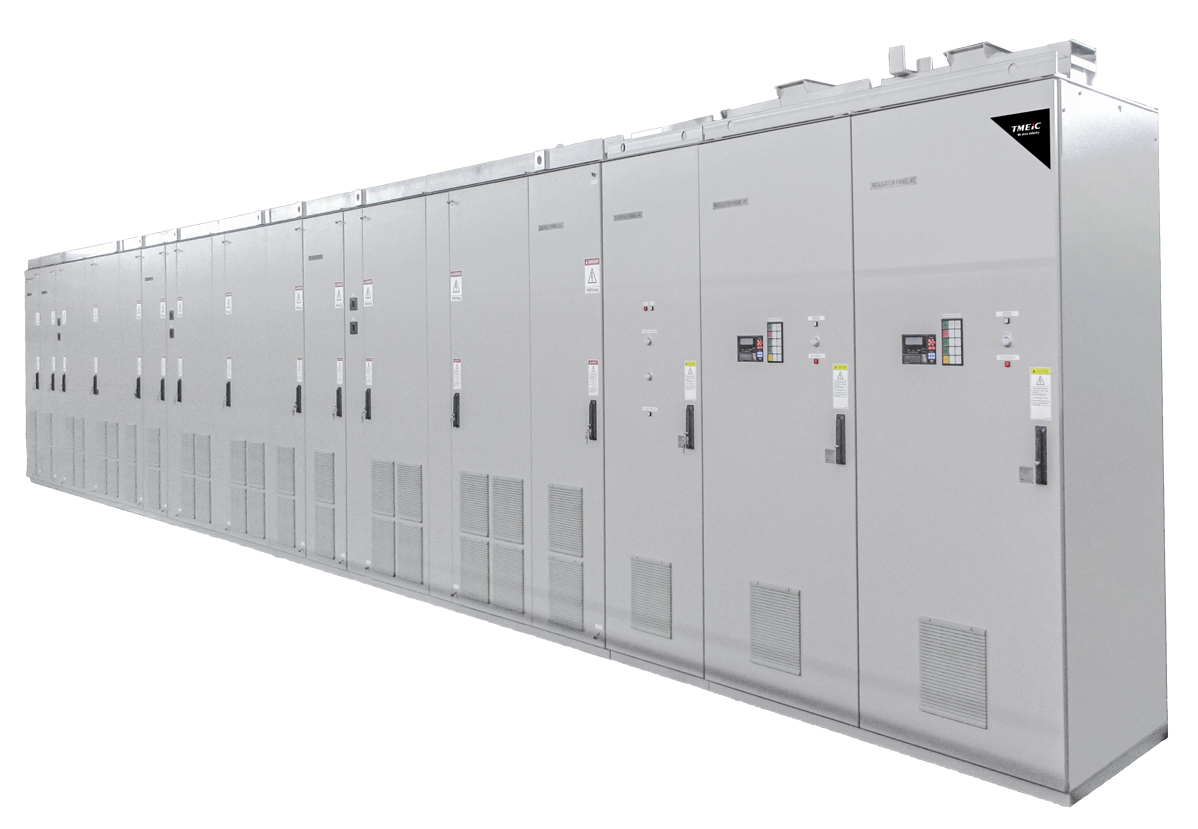

The TMdrive-XL85 is a very high-power, medium voltage (7.2kV), AC fed drive designed for high-efficiency and power-friendly operation in a broad range of industrial applications. A single bank drive is rated for up to 30 MVA power level.

High reliability, low harmonic distortion, and high power factor operation are designed into the drive.

TMEIC’s water cooled design and compatibility of piping materials with de-ionized cooling system ensures that the drive has a MTBF of more than 20 years.

TMdrive-XL85 Product Application Guide TMdrive-XL85 Data Sheet

TMdrive-XL85 Features and Benefits

Design Feature

Conservative design using 6000 V - 6000 A Gate Controlled Thyristors (GCT)
High energy efficiency approximately 98.6%
Diode rectifier ensures power factor greater than 95% in the speed control range
36-pulse converter rectifier by using separated phase shifted transformer
5- level drive output waveform to the motor
Synchronous transfer to line option with no interruption to motor current
Outdoor mounted input isolation transformer included in drive package
Up to 7.2 kV direct drive voltage output level
Deionized water-cooling system

Customer Benefit

Highly reliable operation, expected 20-year drive MTBF
Considerable energy savings
Capacitors not required for power factor correction
No line-side harmonic filters required to provide lower harmonic distortion levels than IEEE-519 guidelines
Suitable for standard motors due to motor friendly wave form
Allows starting control of multiple motors with one drive
No motor current or torque transients when the motor transitions to the AC line
Less heat loss in drive room thereby reducing cooling HVAC costs
Less indoor space required
Simplifies design, installation and logistics
Ability to accept a wide range of industrial voltages such as 10/11/13.8/25/34/69 kV etc.
No output transformer required, and reduction in cable runs and size.
High efficiency cooling
Reduced fan and air conditioning load
