Welding Machines
Since 1964 as a pioneer in the industry, we have over 50 years developing Laser Welding Technology.
The coil joining welding machines for steel industry are sold under the TMEIC brand. Originally, Mitsubishi Electric Corporation has started manufacturing back to 1950’s, Tada Electric Co., Ltd. , a wholly owned subsidiary of Mitsubishi Electric Corporation has taken over it since 2001 till now.
Worldwide Field Service
Worldwide Network
Field Engineering
Remote Support
Why TMEIC as Partner
Maintainability
- Genuine spare parts
- Periodical maintenance
- Remote support
Operation
- Flexible layout
- Safety operation
- Full automatic welding
Cost Effective
- Less maintenance
- Full automatic welding
- Less energy consumption
Experience
- Over 50 years
- Over 450 sets
- Wide variety of materials
Technology
- High mechanical accuracy
- Precise positioning control
- Post annealer/Pre-heater
Reliability
- Stable welding
- Weld inspection system
- Long product life
Worldwide Field Service
- Worldwide Network
- 16 Subsidiaries North/South America, Europe China, India, Southeast Asia Middle East, Australia, Turkey
Field Engineering
- Maintenance support
- Supervisory service
Remote Support
- Online technical support with Remote assist tool
Product Features

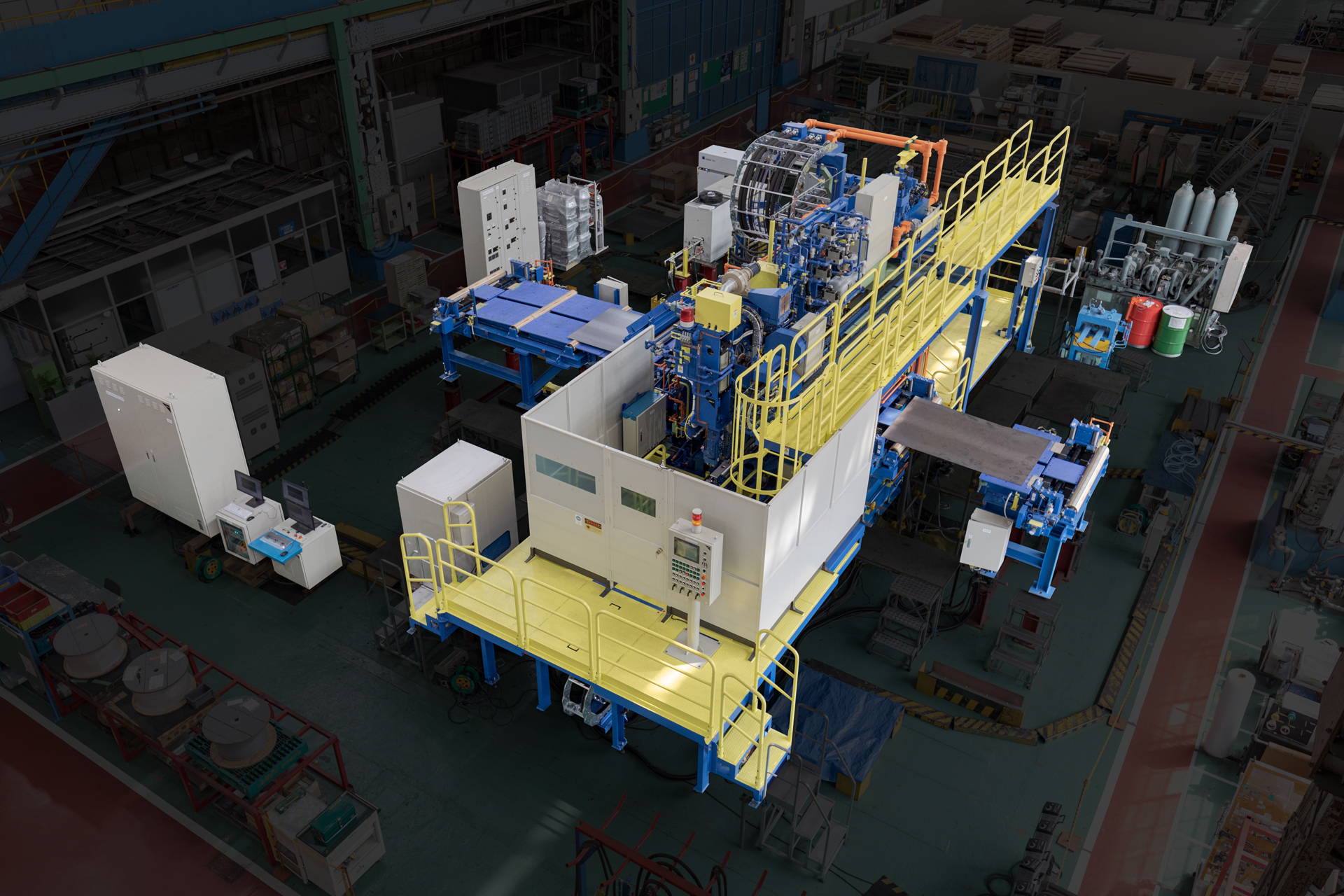

Laser Beam Welder
|

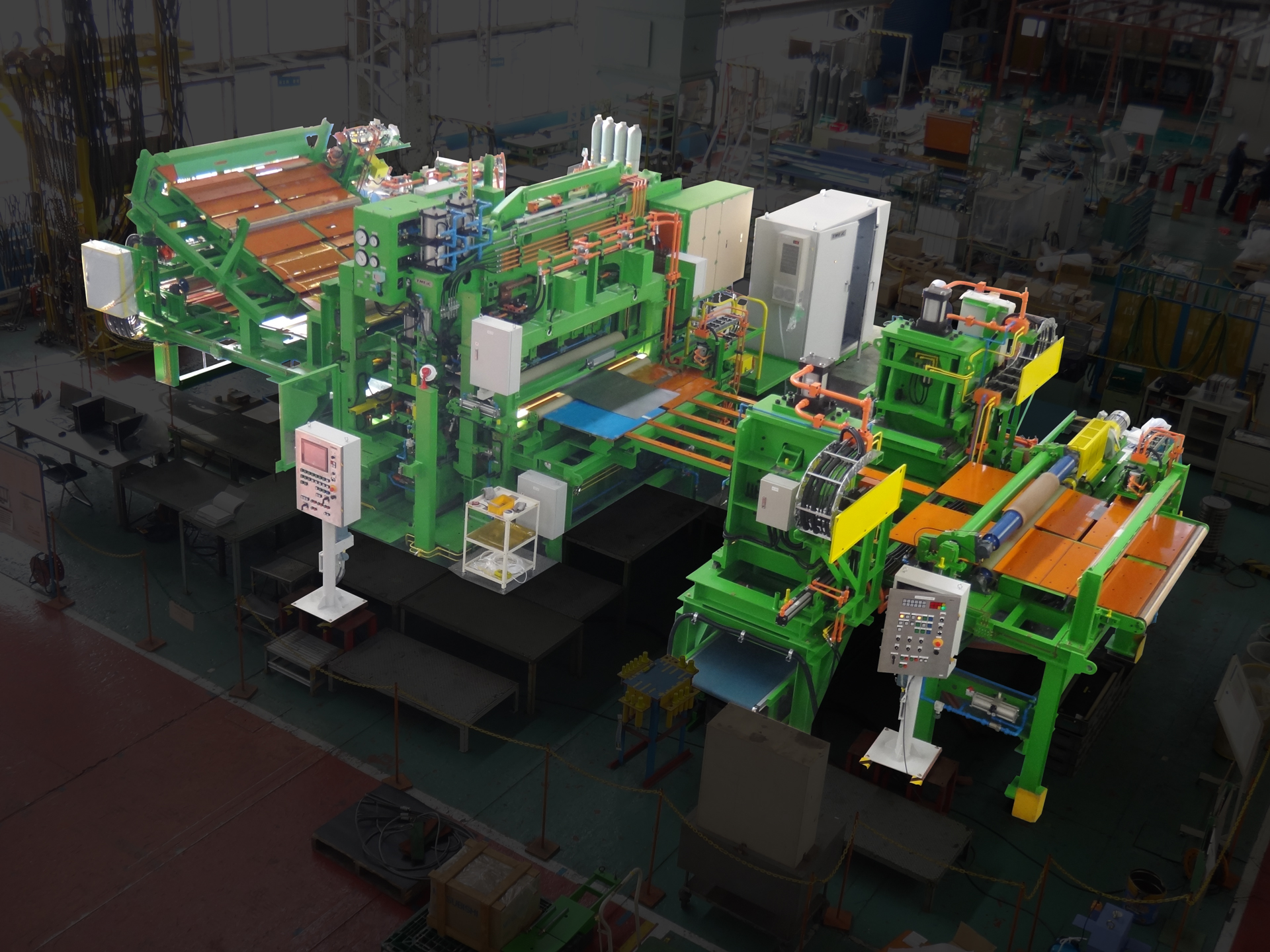

Mash Seam Welder
|
|
|---|---|---|
| Thickness |
|
|
| Material | Low carbon steel, HSS, DP, TRIP, Si steel, Stainless steel, etc | Low carbon steel, HSS, DP, TRIP, Si steel, Stainless steel, etc |
| Summary of Delivery Record | Over 50 sets (Asia, Europe, South America, etc.) | Over 290 sets (Asia, Europe, America, South America, etc.) |
| Features | Solid-state laser with high absorptivity rate
TMEIC original Spatter suppressing laser welding head
Automatic Shear clearance setting function
Automatic Bead inspection system
Welding quality judgement system
PLC data and camera image Synchronization monitor
|
Highly Proven Technology for stable welding
Post-annealing system
Monitoring System for stable welding
|
- Thin gauge type : 0.3~3.2 mm
- Standard gauge type : 0.8~6.6(8.8) mm
- Width : 600~2150mm
- Thin gauge type : 0.1~1.0mm
- Middle gauge type : 0.2~2.5mm
- Thick gauge type : 0.3~4.5mm
- Width : 600~2150mm
Solid-state laser with high absorptivity rate
- Deep penetration by high heat input
TMEIC original Spatter suppressing laser welding head
- Realizing high quality product
- Eliminating the effects of spatter on line equipment
Automatic Shear clearance setting function
- Optimum cutting for each thickness
- Making shear blade life time longer
Automatic Bead inspection system
- Assisting operators quality evaluation
Welding quality judgement system
- Effective use of camera monitoring and image processing for quality judgement
PLC data and camera image Synchronization monitor
- Supporting investigation of trouble cause
Highly Proven Technology for stable welding
- High electrode pressure
- Special copper alloy electrode wheel
- Automatic on-line dresser
- Lower electrode height adjustment system
- Brush roll
- Oil dripped welding function
Post-annealing system
- Passing line smoothly for high carbon steel and high tensile steel by decreasing hardness
Monitoring System for stable welding
- Current
- Speed
- Pressure
- Temperature
- Strip lap length before welding
- Welding seam after welding
