TMdrive-Guardian

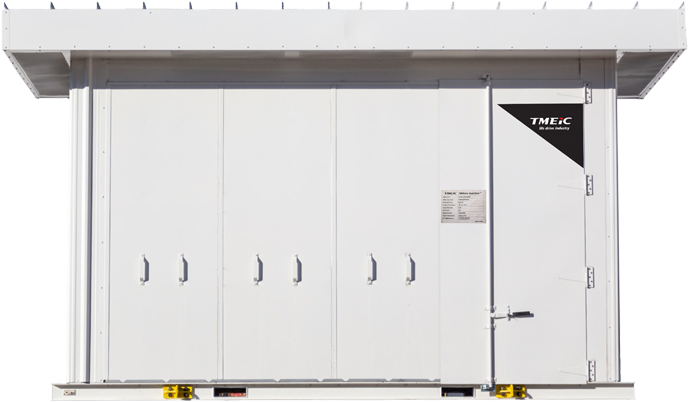

All Weather Enclosure for TMdriveMVe2 Medium Voltage VFDs
Downloadable Resources
TMdrive-Guardian is an innovative thermal management solution for air-cooled VFD. Rated for NEMA Type 3R, this enclosure is ideally suited for a wide variety of applications such as new installs, retrofits, energy audit upgrades, and reactive power compensation.
TMEIC manufactures high-quality, reliable air-cooled medium voltage Variable Frequency Drives (VFD). The TMdrive-MVe2 is TMEIC’s world-class drive solution for powering a variety of rotating machinery such as pumps, compressors, fans, blowers, extruders and other driven equipment.
TMdrive-Guardian Features and Benefits
Design Feature
- NEMA Type 3R Rated
- Wide Ambient Temperature Rating
- HVAC Eliminated
- Black Start Intelligence
- No Air Filters Required
- Easy Installation
- Plug and Play Installation
- Reduces Tax Liability
- Made in America
Customer Benefit
- The enclosure provides protection against dirt, rain, sleet, snow, windblown dust, water
- Designed to operate in the most extreme temperature ratings: -40°C to +50°C (122°F)*1
- Saves an average of $10,000 - $15,000 per year in HVAC costs alone when compared to an industial control building or MCC room with cooling improvements*2
- Enclosure prevents thermal shock to VFD components when starting under extended shutdown situation in extremely cold ambient
- The innovative air-flow technique eliminates filters, the need for frequent filter replacement*3
- No building required, saving construction and development costs associated with E-houses or industrial buildings
- Self-sufficient enclosure. Three cables in, three cables out. No external 480V or 120V connections, only utility mains, control cables, and motor leads.
- The enclosure is classified as weatherproof, free-standing equipment, eliminating the need for real estate improvement that attracts property taxes
- The enclosure is designed, assembled and tested in the U.S.A.
Specifications
| Enclosure rating: NEMA Type 3R |
|---|
| Temperature rating: -40°C - +50°C |
| Voltage: 4.16 kV |
| Approximate Motor Shaft HP (kW) at 4.16 kV: 536 (400) - 3,040 (2,268) |
| Rated Output Current (A): 69 - 385 |
| Inverter kVA output at 4.16 kV: 500 - 2,770 |
| Frame: 100 - 600 |
| Installation site: Outdoor, nonexplosive |
| Wind Speed: 125 MPH |
| Snow Loading: 30 lbs/ft² |
| Enclosure structure: Structurally steel sided and thermally insulated wall and door panels |
| Power Cable: Back wall entry |
| Enclosure mounting: Pad, pier or spot footings |
| Enclosure Base: Galvanized |
| Enclosure lifting: Fork lift and provisions for crane lift |
| Notes |
| 1+50°C applicable with appropriate VFD sizing |
| 2Estimate based on 1890kVA TMdrive-MVe2 running 80% of the time, industrial electricity rate = 6.51¢/kWhr |
| 3Filters provided on the VFD will need to be serviced and cleaned as per installation site |
Enclosure rating: NEMA Type 3R
Temperature rating: -40°C - +50°C
Voltage: 4.16 kV
Approximate Motor Shaft HP (kW) at 4.16 kV: 536 (400) - 3,040 (2,268)
Rated Output Current (A): 69 - 385
Inverter kVA output at 4.16 kV: 500 - 2,770
Frame: 100 - 600
Installation site: Outdoor, nonexplosive
Wind Speed: 125 MPH
Snow Loading: 30 lbs/ft²
Enclosure structure: Structurally steel sided and thermally insulated wall and door panels
Power Cable: Back wall entry
Enclosure mounting: Pad, pier or spot footings
Enclosure Base: Galvanized
Enclosure lifting: Fork lift and provisions for crane lift
Notes
1+50°C applicable with appropriate VFD sizing
2Estimate based on 1890kVA TMdrive-MVe2 running 80% of the time, industrial electricity rate = 6.51¢/kWhr
3Filters provided on the VFD will need to be serviced and cleaned as per installation site
